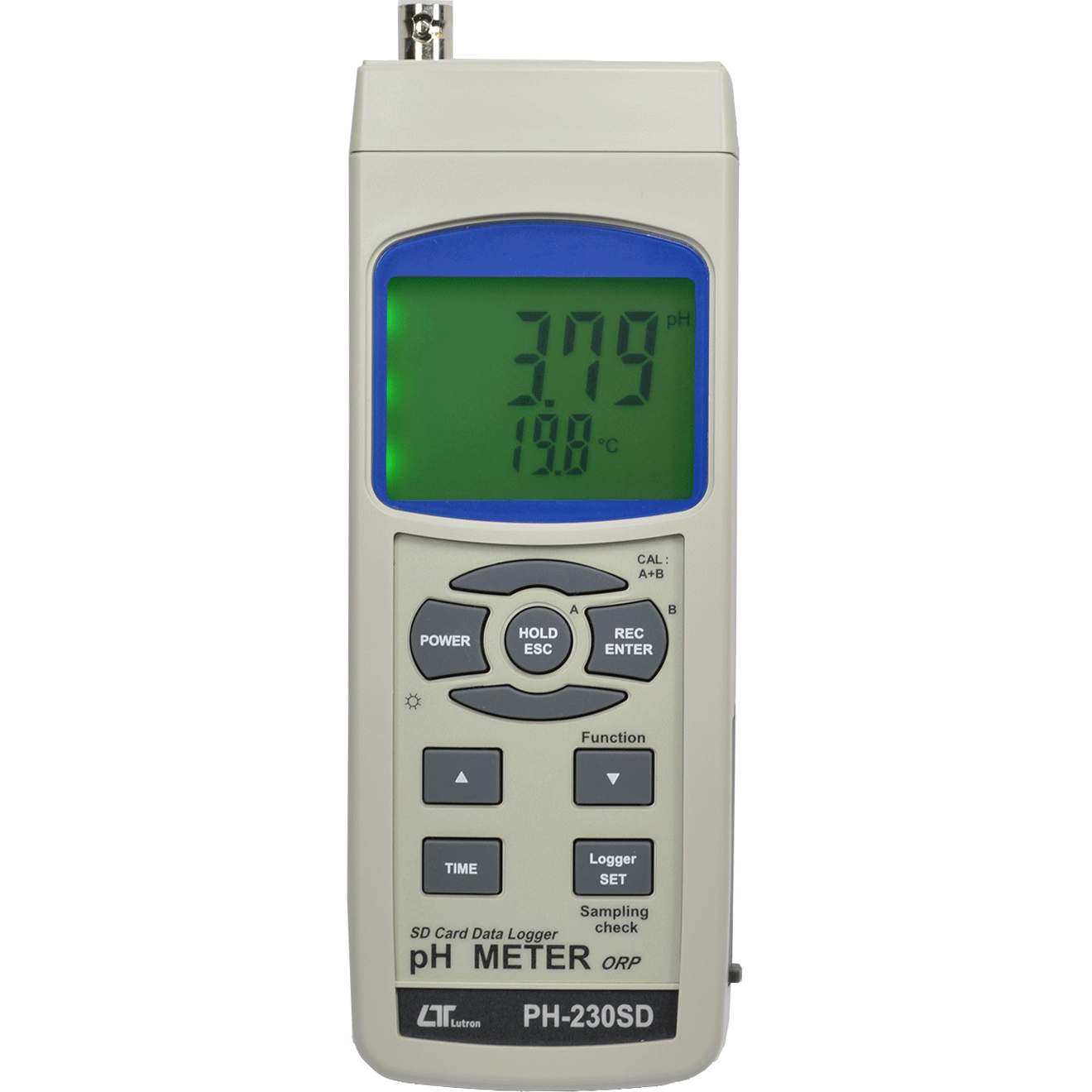

DTK PH 230SD

PH-with-overlay-applied-square

sperphprobe200x200
pH Probe

KEY FEATURES

  • A high quality multi-purpose meter which allows the measurement of pH and Temperature (with ATC probe, included).
  • ORP can also be measured with an additional probe.
  • FUNCTION button allows you to display the desired parameter on the display with temperature.
  • pH auto calibrations to pH 4, 7 & 10 or other standard values.
  • Automatic Temperature Compensation with ATC probe attached.
  • Auto shut off, Hold, min/max.
  • RS232 port enables computer connectivity.
  • Large LCD screen.
  • Fold-out easel back and tripod.
  • Real time SD memory card datalogger. Takes an optional SD card for data logging of results.
The meter is supplied with 6 x AA batteries, BNC pH probe and automatic temperature compensation probe (ATC).Each meter is supplied with a certificate of conformity which is valid for 12 months. Most types of meters can be sent to our laboratory for an annual calibration which is valid for 12 months. For confirmation on which meters can be calibrated please contact DTK Water.

ORDERING INFORMATION

ORDER CODE
DESCRIPTION
PACK SIZE
DTK230
DTK PH 230SD
ea
EDT037
BNC pH probe
ea
DTK2017P/T
Replacement ATC probe
ea
DTK2017P/O
ORP Probe
ea
SDT448
Redox Standard 465 mV
65 ml
SDT223
Redox Standard 475 mV
65 ml
SDT119
pH 4 Buffer Solution
65 ml
SDT118
pH 7 Buffer Solution
65 ml
SDT161
pH 10 Buffer Solution
65 ml
840057
RS232 Cable
ea
850080
Intelligent Software
ea

TECHNICAL SPECIFICATION

PARAMETER
SPECIFICATION
PH PROBE
pH Range:
0 to 14 pH
Resolution:
0.01 pH
Accuracy:
± (0.02 pH + 2d)
ATC PROBE
Temperature Range:
0 to 60 °C / 32 to 140 °F
Resolution:
0.1 °C / °F
Accuracy:
± 0.8 / ± 1.5
ORP PROBE (optional extra)
ORP Range:
0 to 1999 mV
Resolution:
1 mV
Accuracy:
± (0.5 % + 2d)
METER
Dimensions:
177 x 68 x 45 mm (L x W x H)
Weight:
498 g
