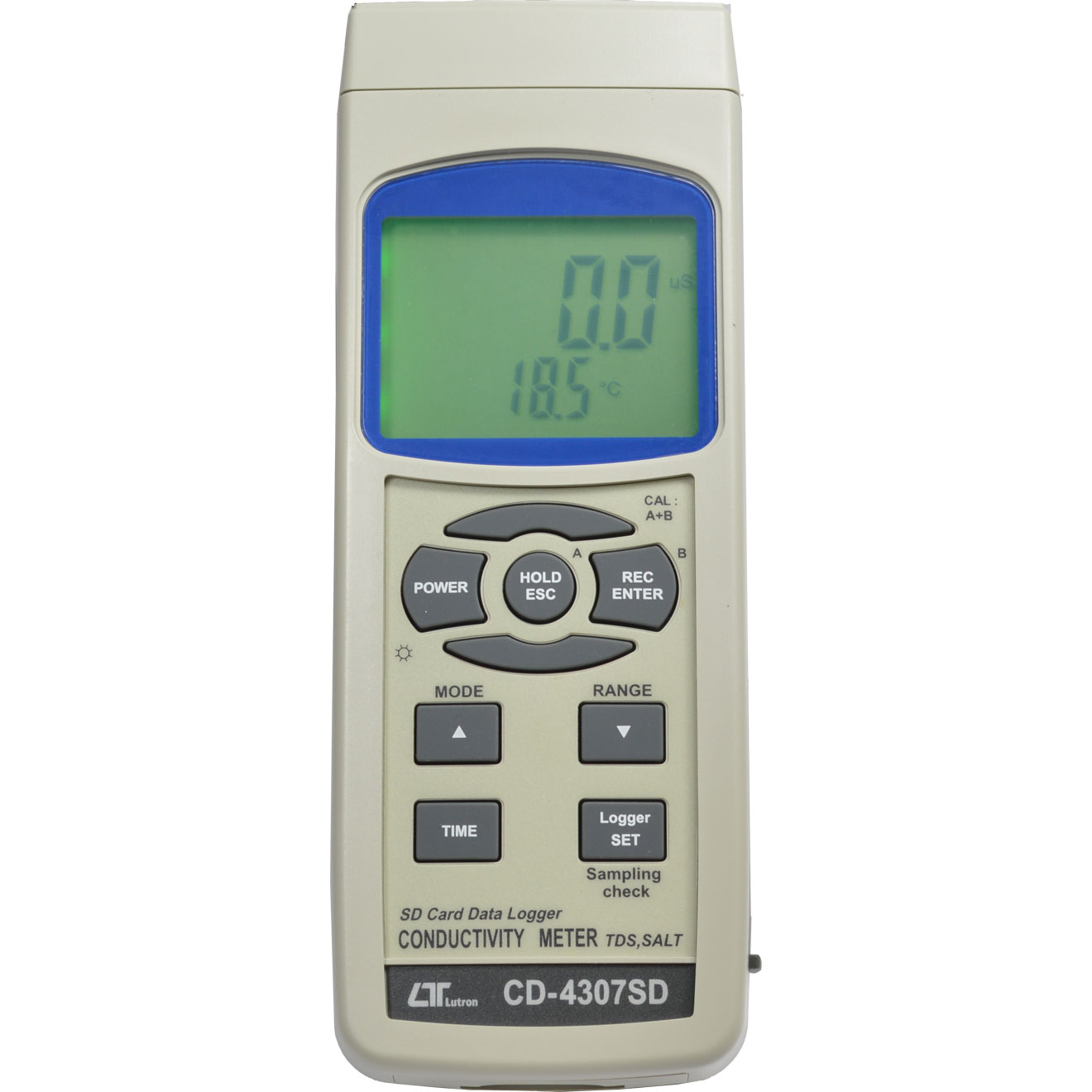

DTK CD 4307SD

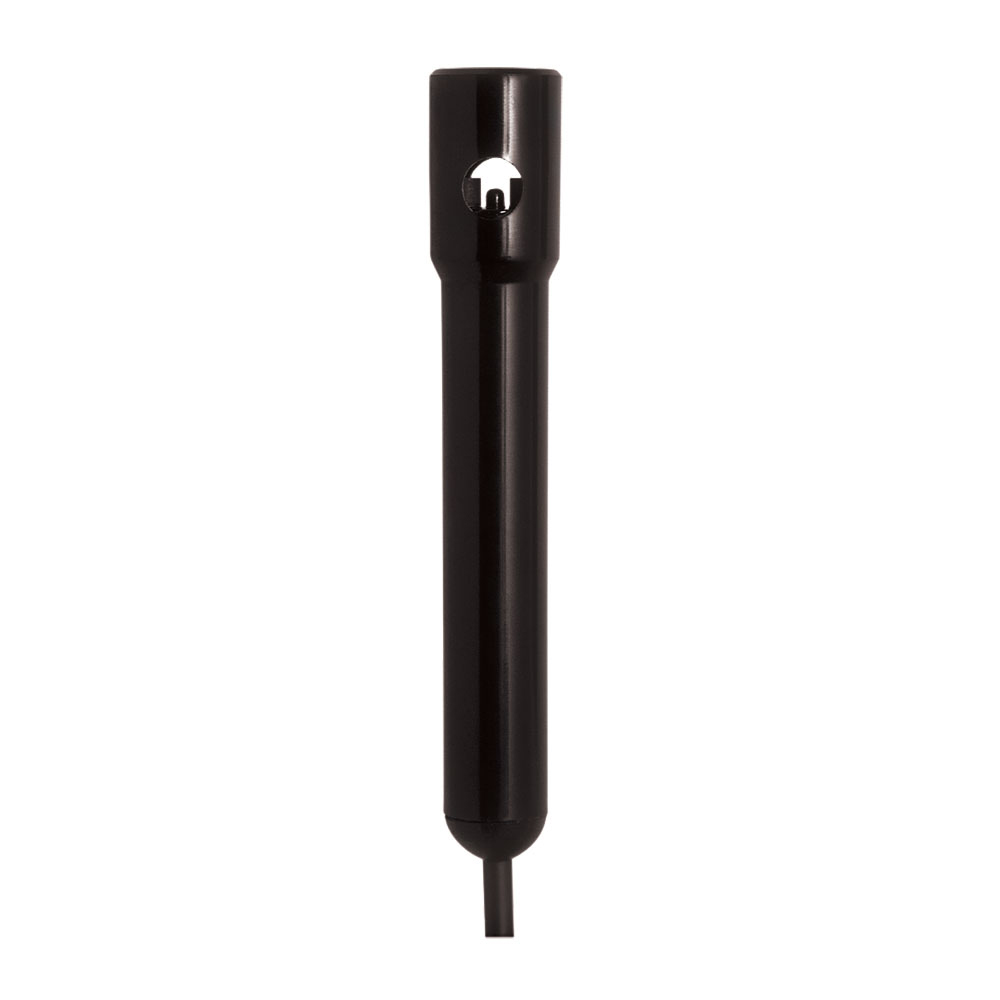

CD-4307-full-cut-out-background-squareCondy & TDS probe



KEY FEATURES

  • A high quality multi-purpose meter which allows the measurement of Conductivity, TDS, Salinity and Temperature.
  • FUNCTION button allows you to display the desired parameter on the display with temperature.
  • ATC for Conductivity with carbon rod electrode for long life.
  • Real time SD memory card datalogger, Takes an optional SD card for data logging results.
  • Auto shut off, Hold, min/max.
  • Preset 0.7 TDS factor
  • RS232 port enables computer connectivity.
  • Large LCD screen with backlight.
  • Fold-out easel back and tripod.
The meter is supplied with 6 x AA batteries and conductivity probe.Each meter is supplied with a certificate of conformity which is valid for 12 months. Most types of meters can be sent to our laboratory for an annual calibration which is valid for 12 months. For confirmation on which meters can be calibrated please contact DTK Water.

ORDERING INFORMATION

ORDER CODE
DESCRIPTION
PACK SIZE
DTK4307S
DTK CD 4307SD
ea
DTK2017P/C
Replacement Conductivity probe
ea
 SDT109
Conductivity Standard 1413 µS
65 ml
 SDT154
Conductivity Standard 12.88 mS 65 ml
 SDT232
Conductivity Standard 84 µS 65 ml
840057
RS232 Cable
ea
850080
Intelligent Software
ea

TECHNICAL SPECIFICATION

PARAMETER
SPECIFICATION
Conductivity
200 µS Range
Measurement:
0 to 200.0 µS
Resolution:
0.1 µS
Accuracy:
± (2 % Full Scale + 1d)
2 mS Range
Measurement:
0.2 to 2.000 mS
Resolution:
0.001 mS
Accuracy:
± (2 % Full Scale + 1d)
20 mS Range
Measurement:
2 to 20.0 mS
Resolution:
0.01 mS
Accuracy:
± (2 % Full Scale + 1d)
200 mS Range
Measurement:
20 to 200.0 mS
Total Dissolved Solids
200 ppm Range
Measurement:
0 to 132 ppm
Resolution:
0.1 ppm
Accuracy:
± (2 % Full Scale + 1d)
2,000 ppm Range
Measurement:
132 to 1,320 ppm
Resolution:
1 ppm
Accuracy:
± (2 % Full Scale + 1d)
20,000 ppm Range
Measurement:
1,320 to 13,200 ppm
Resolution:
10 ppm
Accuracy:
± (2 % Full Scale + 1d)
200,000 ppm Range
Measurement:
13,200 to 132,000 ppm
Resolution:
100 ppm
Accuracy:
± (2 % Full Scale + 1d)
Salt
Measurement Range:
0 to 12 % salt (% weight)
Resolution:
0.1 % salt
Accuracy:
± 0.5 % salt value
Temperature
Temperature Range
0 to 60 °C / 32 to 140 °F
Resolution:
0.1 °C / °F
Accuracy:
± 0.8 / ± 1.5
METER
Dimensions:
177 x 68 x 45 mm (L x W x H)
Weight:
489 g
