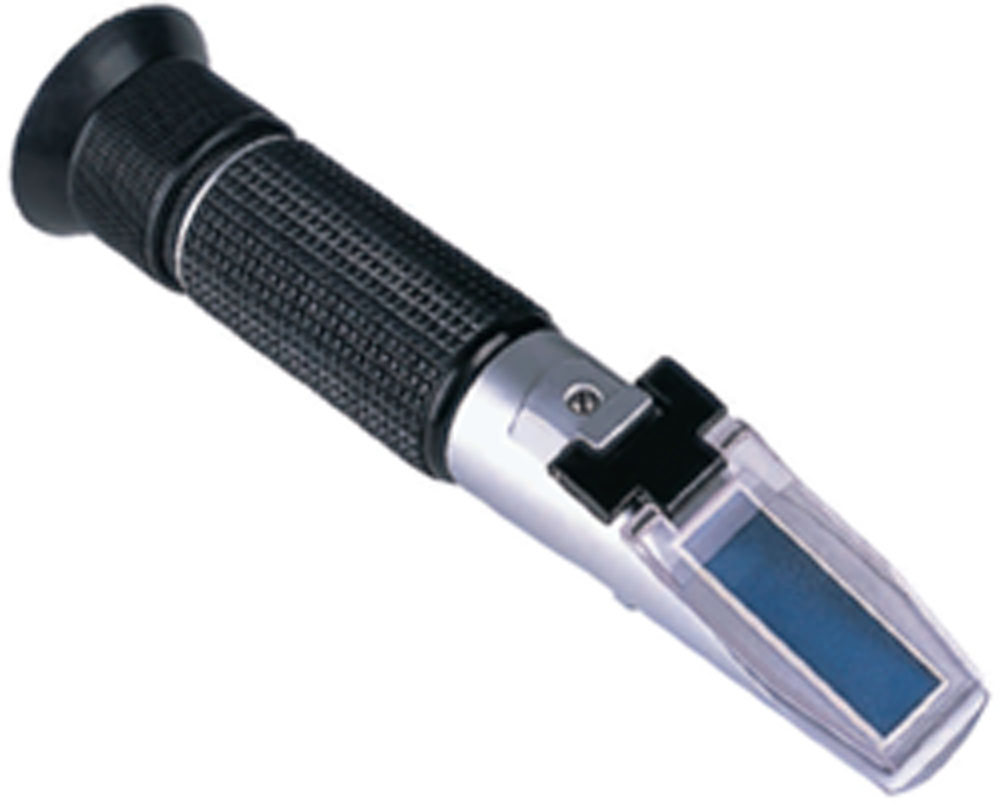

RHA-200ATC – REFRACTOMETER



RHA-100ATCPIC1000x1000



rha100atcreticle1000x1000

KEY FEATURES

  • (ATC) Automatic Temperature Compensation.
  • Easy to focus.
  • Easy to calibrate.
  • Heavy duty.
  • Light weight unit designed to last.
  • Accurate testing results guaranteed.
  • Highest quality materials.
  • Non slip rubber design for practicality.
  • Easy to use.

EASY TO USE REFRACTOMETER

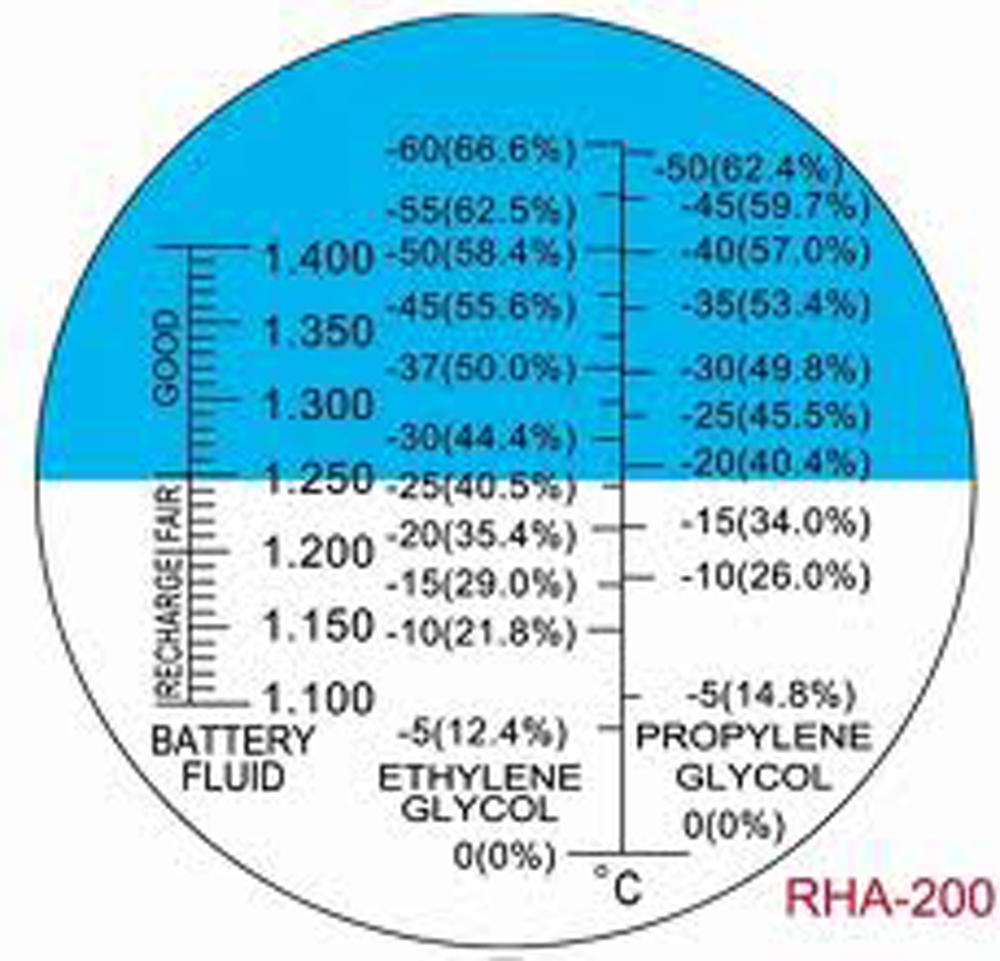

The RHA-200ATC refractometer is ideal for measuring  both Ethylene Glycol & Propylene Glycol. The refractometer is equipped with the °C unit system and is capable of measuring with high accuracy, and providing precise results.The RHA-200ATC comes equipped with a clear reticle for easy reading and there is no need for batteries as it works on ambient light.

Easy to use, just take a small sample of solution and drop in on to the prism to get a reading in seconds. It can also be used to measure the concentration of the Antifreeze liquids. The RHA-100ATC’s built in automatic temperature compensation system means the refractometer is highly reliable and provides excellent results.

PRODUCT SPECIFICATION

PARAMETER
MEASURING RANGE
RESOLUTION FACTOR
E
0°C – -60°C
5°C
P
0°C – -50°C
5°C
B
1.100 – 1.400sg
0.01sg
ORDER CODE
DESCRIPTION
EDT056
RHA-200ATC Refractometer
