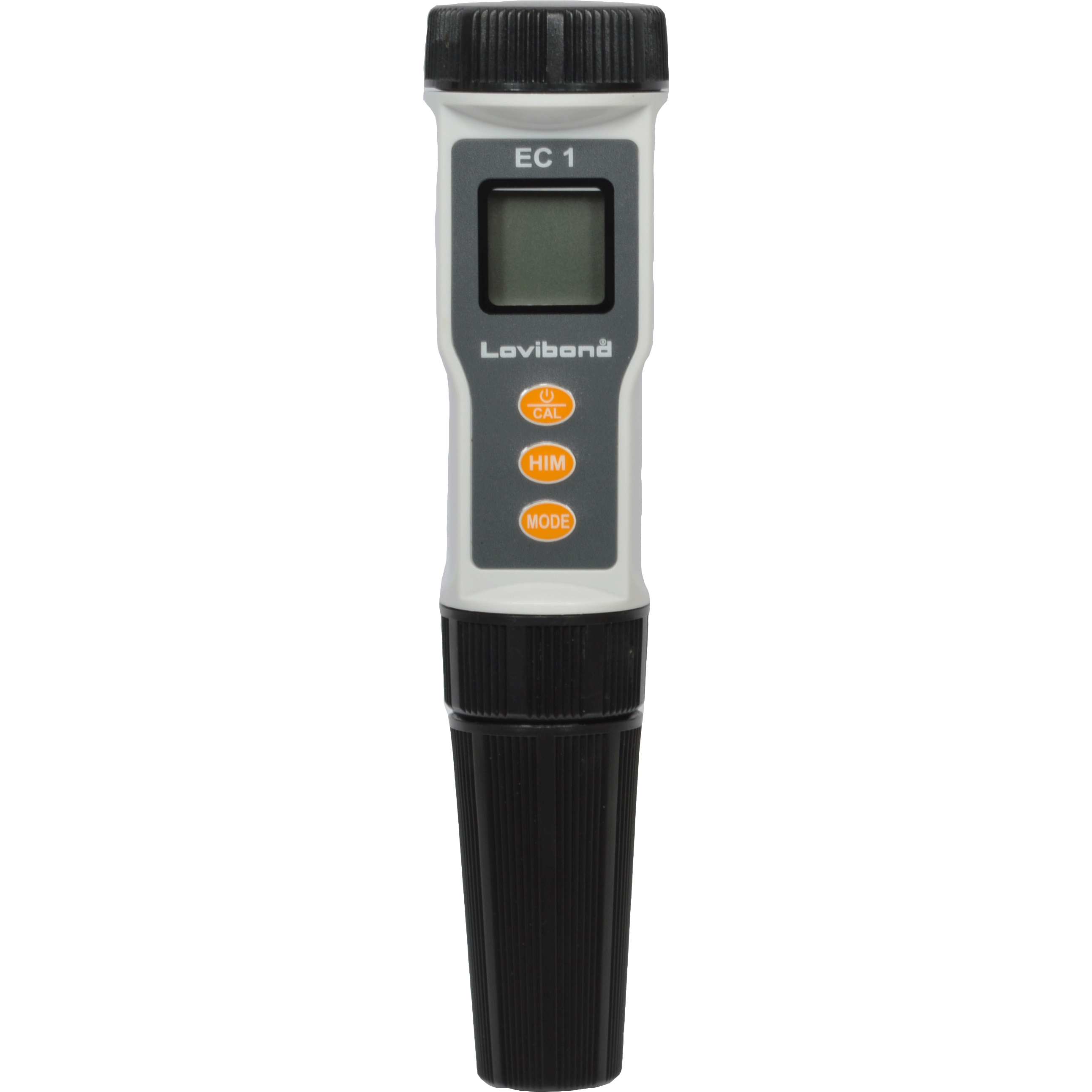

EC1 – CONDUCTIVITY / TDS / SALINITY / TEMPERATURE METER

EC1-Square-for-web

KEY FEATURES

    • Reads Conductivity, TDS, Salinity & Temperature.
    • Temperature range; 0 to 90 °C.
    • Conductivity range; 0 to 2000 µS, 2.00 to 20.00 mS.
    • TDS range; 0 to 1300 ppm, 1.30 to 13.00 ppt.
    • Salinity Range; 0 to 1000 ppm.
    • Floats in water.
    • Auto shut off.
    • Data hold.
    • Only weighs 74 g.

EC1 CONDUCTIVITY/TDS/TEMPERATURE METER

The EC1 is a simple to use, accurate, reliable hand held meter which has been designed to handle the tough environment of field work. The instrument provides the user with readings for conductivity/ TDS and temperature providing maximum simplicity.

CALIBRATION SOLUTIONS

Each meter is supplied with a certificate of conformity which is valid for 12 months.

All types of meters can be sent to our laboratory for an annual calibration which is valid for 12 months.

ORDERING INFORMATION

ORDER CODE
DESCRIPTION
EC1
Conductivity/TDS/Temperature Meter
EC1P
Replacement EC1 probe

CALIBRATION SOLUTIONS

ORDER CODE
DESCRIPTION
VOLUME
SDT109
1413 µS Conductivity Solution
65ml

TECHNICAL SPECIFICATION

PARAMETER
SPECIFICATION
CONDUCTIVITY
Range:
0 to 2000 µS / 2.00 to 20.00 mS
Resolution:
1 µS / 0.01 mS
Accuracy:
1 µS / 0.01 mS
TOTAL DISSOLVED SOLIDS (TDS)
Range:
0 to 1300 ppm / 1.30 to 13.00 ppt
Resolution:
1 ppm / 0.01 ppt
Accuracy:
1 ppm / 0.01 ppt
SALINITY
Range:
0 to 1000 ppm / 1.00 to 12.00 ppt
Resolution:
1 ppm / 0.01 ppt
Accuracy:
1 ppm / 0.01 ppt
TEMPERATURE
Range:
0 to 90 °C
Resolution:
0.1 °C
Accuracy:
±0.2 °C
METER
Dimensions:
170 x 40 x 40 mm (L x W x H)
Weight:
74 g
