RANGER – 45 SLIDE INCUBATOR

Ranger 45_1000X1000

KEY FEATURES

  • 45 Dipslide Capacity.
  • Compact and convenient design.
  • Dipslides are visible without removing.
  • Robust case suitable for field use.
  • Just plug in and go.
  • Superb heat distribution with no moving parts.
  • Suitable for on site or on the move incubation.
  • Temperature range; Ambient +5 – 45 °C.
  • Accurate temperature control; ± 0.5 °C.
  • Suitable for L8 applications.
  • High Temperature Protection.
  • 240 V power supply.

INCUBATION OF DIPLIDE TESTS

Dipslides are used to establish and asses if the conditions present in a water system encourage bacteria to multiply. Once the sample has been collected the dipslide requires incubation at 30 °C for 48 hours to obtain a true result and consistently time after time.

A dipslide incubator is a critical element of microbiological monitoring. A lower temperature can mean the bacteria will grow more slowly and give a false low reading. If your reading is artificially low then the treatment engineer will consider that no action is necessary and the bacteria will be free to multiply and increase the risk to public health. Conversely if the temperature is high then the growth may be accelerated giving a false positive. This false high bacteria count can lead to unnecessary and expensive extra cleaning and treatment processes.

Approved code of practice and guidance for the control of legionella bacteria in water systems requires weekly monitoring of microbiological activity.

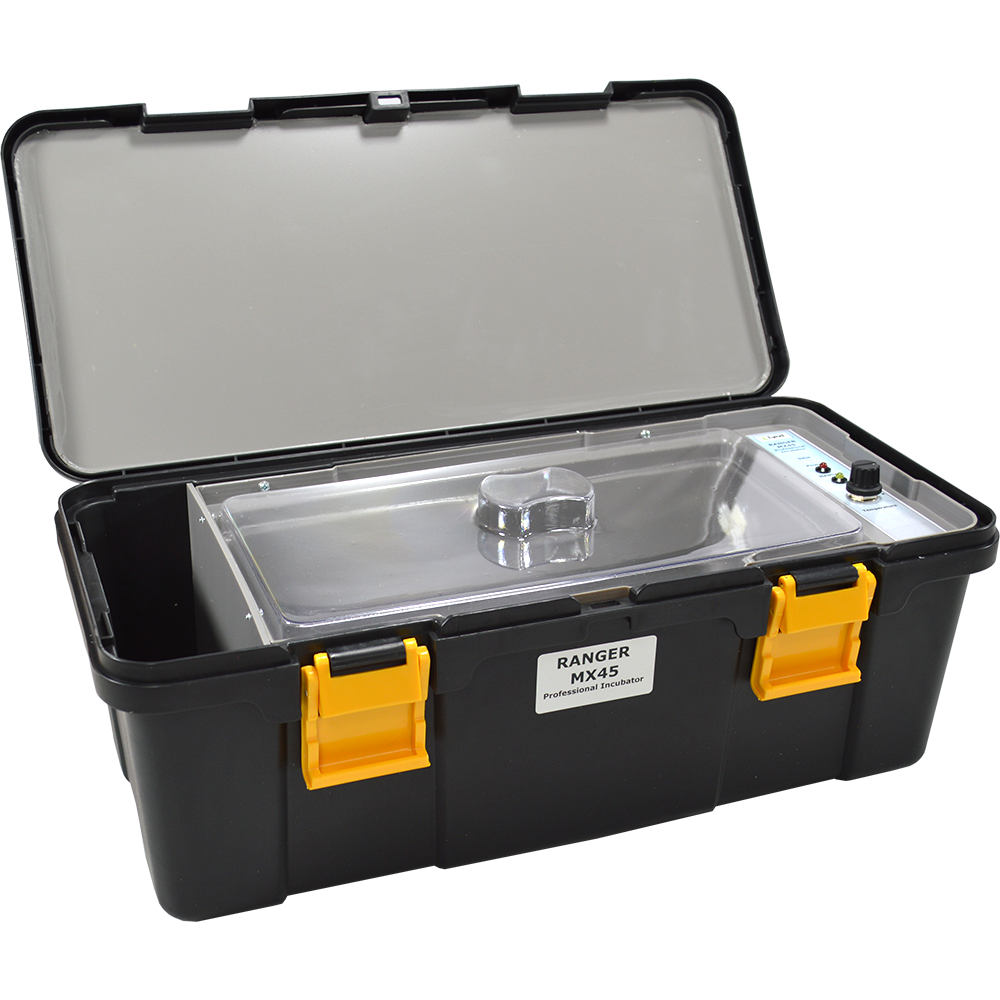

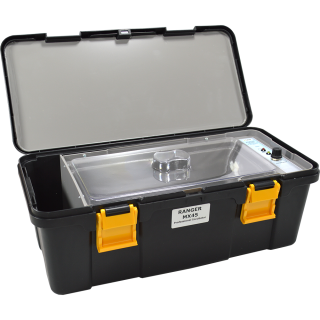

RANGER INCUBATOR

The DTK Ranger incubator has a capacity to incubate 45 dipslides. The incubator has a transparent lid which allows easy observation of the dipslides contained inside.

The Ranger is compact and has been specifically designed for those treatment engineers who have a routine requirement to monitor a large number of cooling towers while mobile.

Running on 220/240 V mains electricity or 12 V car lighter socket it is protected by an internal fuse and has over-temp protection for safe extended use.

Simplicity of operation, dipslide visibility, 30 minute minute warm up period means the incubation of your dipslides is safe inside the Ranger incubator.

ORDER CODES

ORDER CODE
DESCRIPTION
CAPACITY
EDT057
Gnat Dipslide Incubator
2
EDT059
Cultura Dipslide Incubator
18
EDT093
Ranger Dipslide Incubator
45

TECHNICAL SPECIFICATION

PARAMETER
SPECIFICATION
Capacity:
45 Dipslides
Temperature Range:
Ambient +5 – 45°C
Temperature Accuracy:
± 0.5 °C
Power Supply:
12 V / 240 V
Dimensions:
260 x 320 x 270 mm
Weight:
3500 g
