MD100 PHOTOMETER

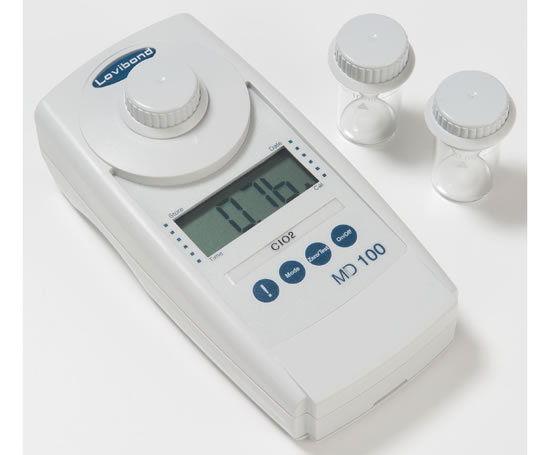

The_Tintometer_Ltd_MD100_waterproof_compact_portable_photometer_3

Key Features

    • Waterproof (as defined in IP 68, 1 hour at 0.1m).
    • Automatic Switch-Off.
    • Real-Time-Clock and Date.
    • Calibration Mode.
    • Backlit Display.
    • Storage Function.
    • Suitable for use as a testing instrument.

Description

The MD100 uses high quality interference filters with long-life LEDs as a light source without any moving parts in a transparency sample chamber. The units supply accurate, reproducible results very quickly. Other major advantages include ease of operation, ergonomic design, compact dimensions
and safe handling.
The calibration and software-based adjustment options mean that the MD100 is also suitable for use as a testing instrument.

MD100_Boiler_Cooling_cut_400x400

Applications

The MD100 Photometer is used in a wide range of water testing applications including Industrial water treatment, Boiler, cooling and closed system analysis, Process water, Pre-treatment plant, Effluent water, Science & research, Laboratories and Mobile applications.

Available Methods

There are mutliple MD100′s available with a wide range of parameters available. For information on the MD100 Cooling Water please see here. For information on the MD100 Boiler Water please see here

IRIM Infra-Red Data Transmission Module

The IRIM (Infra-red data transmission module) uses modern infra-red technology to transmit data from the MD100 to one of 3 optional interfaces. This allows the MD100 to be connected to a computer or printer. For more information on the IRIM click here.

For enquiries please email:
info@dtkwater.com

N.I.S.T Tracability

The instrument has a factory calibration, which is related to international standards which are not N.I.S.T traceable. The instrument may be calibrated by the user in a “user calibration mode” with N.I.S.T traceable standards. (N.I.S.T – National Institute of Standards and Technology)

Further Information

For further information on the MD100 photometer including available parameters, you may wish to look at our sales literature which can be downloaded here.

Technical Specification

Feature
Specification
Display:
Backlit LCD (on keypress)
Interface:
Infra-red interface for test data transfer*
Optics:
LED’s, interference filters (IF) and photo sensor in transparent sample chamber.
Wavelength range:
430 nm IF Δλ = 5 nm
530 nm IF Δλ = 5 nm
560 nm IF Δλ = 5 nm
580 nm IF Δλ = 5 nm
610 nm IF Δλ = 6 nm
660 nm IF Δλ = 5 nm
IF = interference filter
Wavelength Accuracy:
± 1 nm
Photometric Accuracy*:
3% FS (T = 20°C – 25°C)
Photometric Resolution:
0.01 A
Operation:
Acid and solvent resistant, touch-sensitive keypad with audible feedback via integrated beeper
Power supply:
4 AAA batteries
Operation time:
approx 17 hours continuous or 5000 tests
Auto-off:
Approx 20 minutes after last key press with audible signal
Dimensions:
Approx 155 x 75 x 35 mm (unit)
Weight (unit):
Approx 260 g
Ambient conditions:
5 – 40°C at max.
30 – 90% rel. humidity
(non-condensing)
Languages:
English, German, French, Spanish, Italian, Portuguese, Polish, Indonesian; additional languages available via internet download
Memory:
Up to 16 data sets

*IRIM infra-red interface module required for data transmission
**Tested with standard solutions
